100-600kg/h PP strap extrusion machine 5-15mm single screw PP strapping band production line
PRODUCT DESCRIPTION OF PP STRAP EXTRUSION MACHINE
pp strap extrusion machine
Working principle of pp strap extrusion machine:
The feeding section ---- feeds the PP polypropylene pellets through the hopper into the extruder.
Extrusion ---- screw is heated and rotated to melt and extrude the material.
Extrusion ---- extrudes the melted polypropylene strip blanks through the die to form the desired shape.
Cooling & Shaping ---- The extruded product is shaped and cooled by cooling water tank device.
Stretching ---- stretching oven heats the PP strip blanks and stretches them, ratio 1-10 times.
Shaping---Shaping oven will heat and shape the PP BELT again to make the finished product specification more standard.
Winding ---- will wind the finished PP belt into rolls and put it into storage.
Raw materials------
100% PP polypropylene new material(Strong transparency, bright colors, high tensile strength)
4 straps -PP strapping equipment parameters
| Name | PP strap extrusion machine |
| Number of strips | 6 strips |
| Extrusion specifications | Width: 5-19mm, Thickness: 0.4-1.2mm |
| Material barrel | 150kg |
| Control system | PLC |
| Screw | ¢ 110*3300 mm |
| Screw feeder | 1 set |
| Motor power | 45 (kw) |
| Screen changer | Automatic/Manual |
| Embossing machine | 1/2 sets |
| Winding machine: | Automatic/Manual |
| Total power of equipment | 120kw |
| Production capacity: | 300-500kg /h |
| Equipment voltage | three-phase 380v /50Hz (Support customization) |
| Container | 40GP*2pcs |
DETAILS OF PP STRAP EXTRUSION MACHINE
Winding machine--------
can be matched with Automatic winding machine (automatic roll changing, automatic tape cutting, automatic stop), servo motor control, no manual operation required.

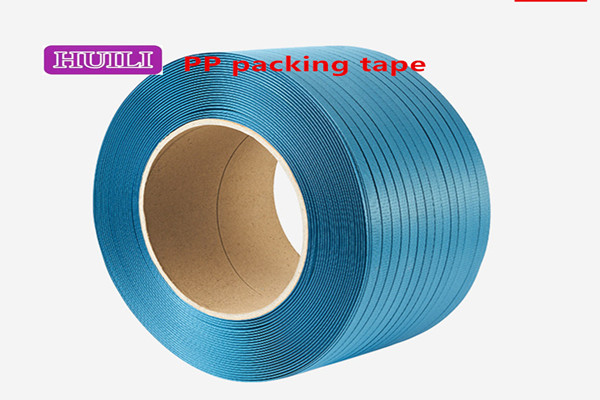

FINISHED PP BELT----------
The finished PP BELT is wound neatly, rolled flat, and has no overlap. It is suitable for all kinds of ------Fully automatic and semi-automatic baling machines.
About th SERVICE:
We provide comprehensive technical support and service for our PP strap extrusion machine, Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP strap extrusion machine.
2.Analysis of the cost of PP strap extrusion machine.
3.Raw materials that can be used for PP strap extrusion machine.
After-sales service:
1.Water and electricity circuits of PP strap extrusion machine, circuit drawings, etc.
2.Installation, commissioning and training of PP strap extrusion machine.
3.Maintenance service of PP strap extrusion machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FAQ:
Q:What is the voltage of PP strap extrusion machine?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the PP strap extrusion machine?
A:We are from China.
Q:Can PP strap extrusion machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strap extrusion machine stable?
A:We have 30 years of manufacturing experience, and have their own PP strap extrusion machine plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strap extrusion machine support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strap extrusion machine look like?
A:Equipped with Automatic wrapping machine/semi-automatic wrapping machine.
